Description

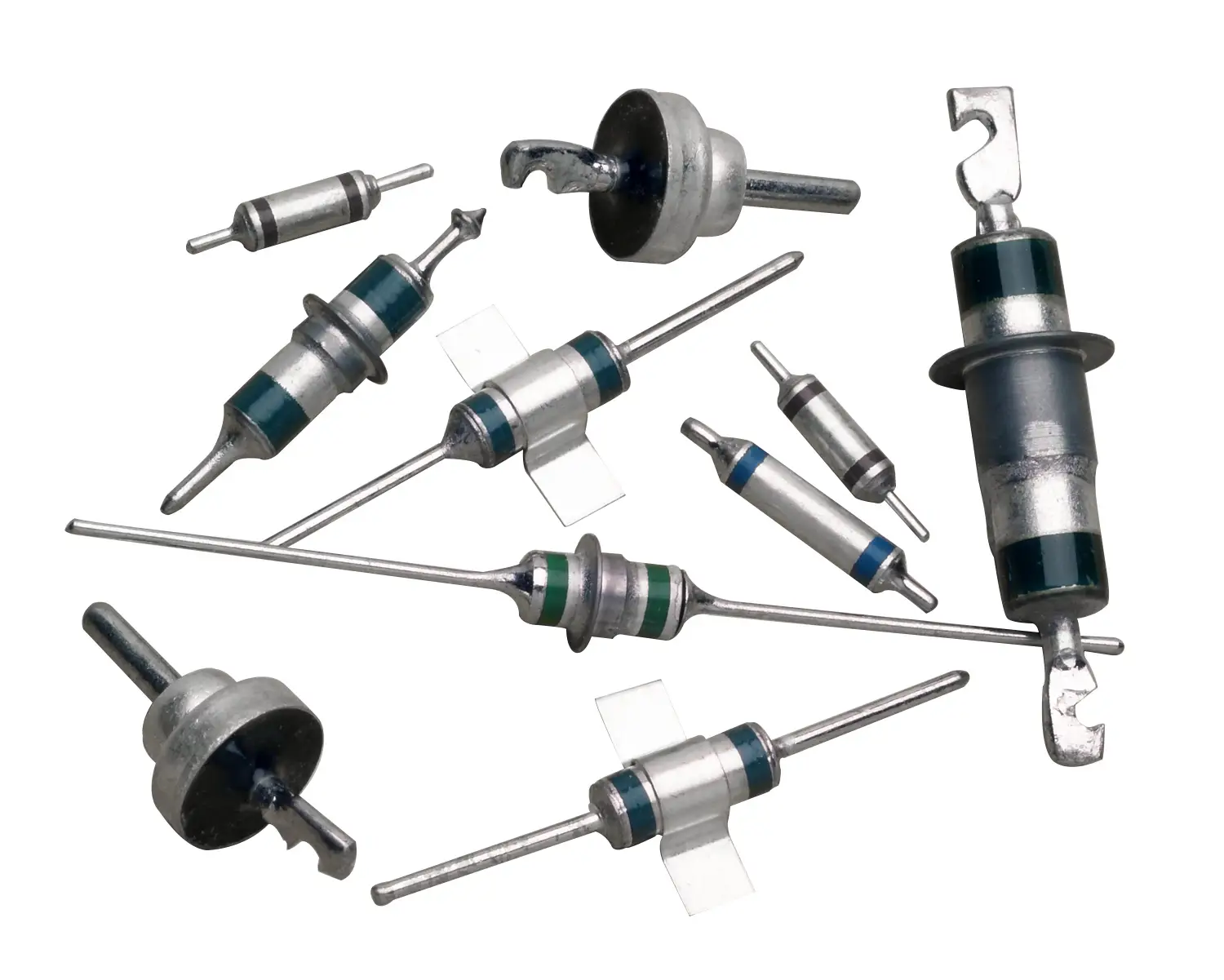

Solder-in Pi-Circuit EMI Filter — M15733/51-0002 (51-750-313)
A board-mount, solder-in EMI filter with a Pi circuit, qualified to MIL-PRF-15733 (QPL part M15733/51-0002). Solder-in construction suits critical areas where mounting tools or hardware can’t be used, and allows installation alongside other board-mounted components. Primarily used for filtering signal/data lines and DC power lines.
Electrical Specifications
| Circuit Type |
Pi |
| Rated Voltage |
70 VDC |
| Current Rating |
10 A (at 125°C) |
| Minimum Capacitance |
0.022 µF |
Minimum Insertion Loss (dB)
| 1 MHz |
10 MHz |
30 MHz |
100 MHz |
300 MHz |
1 GHz |
10 GHz |
| 7 |
25 |
60 |
70 |
70 |
70 |
70 |
Mechanical (Figure 3)
| Dimension A |
0.312 in (7.92 mm) |
| Dimension B |
0.780 in (19.81 mm) |
| Lead Diameter (D) |
0.032 in (0.81 mm) |
General Features
- Small size for effective use of board space
- High-temperature construction prevents reflow during installation
- MIL-PRF-15733 QPL qualified
- Ideal for filtering signal/data lines and DC power lines
📥 Download Datasheet (PDF)
