Description

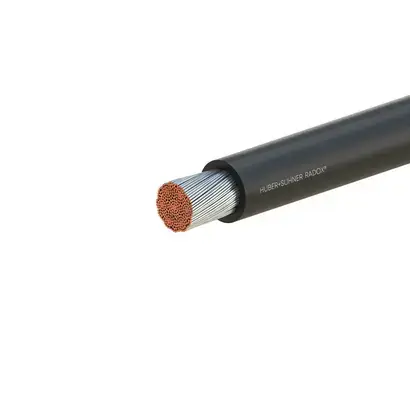

HUBER+SUHNER RADOX RXL 155 single-core cable, 10 mm² cross-section, black.
A flexible, radiation cross-linked cable built for demanding thermal
environments, rated for continuous operation from -55 °C up to +155 °C.
Key features
– Excellent high- and low-temperature performance (-55 °C to +155 °C)
– Ozone and weathering resistant
– Flame retardant
– Soldering-iron resistant
– Easy to strip and process
– Compatible with all common resins and varnishes
– Flexible construction
Typical applications
For protected and fixed installation inside electrical equipment — particularly
suited to connecting motor windings, switchboards, magnets, and transformers.
Electrical ratings
– Voltage rating, conductor to earth: 450 / 600 V AC
– Voltage rating, conductor to conductor: 750 / 1000 V AC
– Max. permissible DC, conductor to conductor: 1240 / 1800 V DC
– AC test voltage: 2500 / 3500 V
Mechanical
– Temperature range: -55 °C to +155 °C
– Min. bending radius (flexing): 3 × D for outer diameter ≤ 12 mm;
4 × D for outer diameter > 12 mm
Submit a request for quotation for current availability, cut lengths, and lead time.
