Description

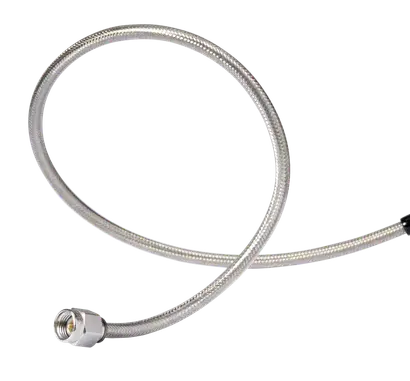

Flexible 50 Ω microwave cable assembly from the HUBER+SUHNER MINIBEND “bend-to-the-end” product family, terminated with SMA straight plugs (male) at both ends. Designed as a direct drop-in replacement for 141-size semi-rigid cable, MINI141 delivers semi-rigid performance with the routing freedom of a flexible assembly – bendable right up to the connector.
Key features
– SMA (male, straight) to SMA (male, straight), 50 Ω
– Direct replacement for 141-size semi-rigid cable
– Bend-to-the-end flexibility; static bend radius 8.38 mm, dynamic 25.15 mm
– Solderless cable junction; low-loss PTFE dielectric
– Compliant to MIL-DTL-17 (cable) and MIL-PRF-39012 (connectors)
– Applicable up to 26.5 GHz; VSWR max 1.4; propagation velocity 76 %
– Cable diameter 3.61 mm; operating temperature -55 °C to +125 °C
Typical insertion loss: 0.18 dB (DC-2 GHz) to 0.72 dB (18-26.5 GHz) for the 6-inch version; loss scales with length.
Select your required length below, then submit a request for quotation.
